POE+ 60W SMD 24 Pins LP6018NL 5G Magnetic Transformer

Product Categories
LINK-PP INT'L TECHNOLOGY CO., LIMITED
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

POE+ 60W SMD 24 Pins LP6018NL 5G Magnetic Transformer

  • 1
  • 2

Brand Name : LINK-PP

Model Number : LP6018NL

Certification : UL,RoHS,Reach,ISO

Place of Origin : Guangdong,China

MOQ : 400/2000/10K/25K

Price : $0.06-$3.2

Payment Terms : TT,NET30/60/90 Days

Supply Ability : 3KK/Month

Delivery Time : Stock

Packaging Details : T&R

Item No : LP6018NL

Category : Gigabit Rj45 Transformer

Turns Ratio : 1CT : 1CT

Mounting : Surface Mount

Size / Dimension : 18.1mm L x 12.1mm W x 6.3mm H

Archivi Disponibili : PDF/3D/ISG/Stp/Step/Datasheet

Contact Now

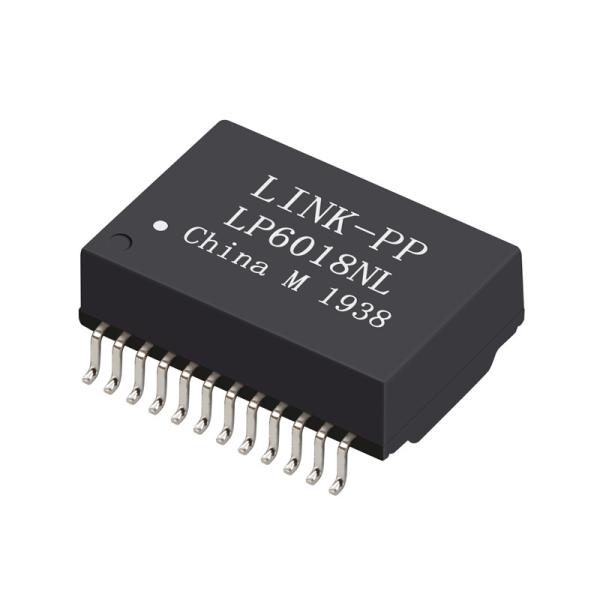

5G Magnetic Transformer With POE+ 60W SMD Single Port 24PINS LP6018NL
  • 5 Gigabit Ethernet Discrete Transformer
  • IEEE802.3ab/af Compliant
  • UL/EN60950 Recognized
  • 100% Electrical Testing
  • 1500Vrms Hi-Pot
  • Patented Open Frame Construction
Number of ports Applications Turns Ratio Power Over Ethernet
LP6018NL Lan Ethernet(PoE+) 1:1 IEEE 802.3/IEEE 802.3af

Packaging Cores Per Port Mounting Type Temperature
Reel , Carton 8 SMT/SMD 0 TO + 70

Pins Number Shielding Isolation Voltage LED Color
24 Pins -- 1500 Vrms ---


Electrical Specification @25℃

1.Insertion Loss(dB Max): 0.3-1MHz: -1.1 1-65MHz: -0.8
65-100MHz: -1.0 100-125MHz: -1.2
2.Return Loss(dB Min @100 OHM): 0.5-40MHz: -18
40-100MHz: -12-20LOG(f/80MHz)
3.Crosstalk(dB Min): 0.3-100MHz: -33-20LOG(f/100MHz)
4.CM TO CM REJ: 0.3-100MHz: -30dB Min
5.CM TO DM REJ: 0.3-100MHz: -35dB Min
6.Turns Ratio: PRI:SEC= 1CT:1CT ±2%
7.Inductance(100KHz/0.1V@11mA): 350uH Min
8.Balanced DC Line Current: 350mA Max @ 57VDC Continuous
9.Hipot: 1500Vrms/0.5mA
10.Operating Temperature: -40℃～+85℃.

NOTES:


1.Gigabit Transformer Modules With Power Over Ethernet Option
2.Meets IEEE 802.3af speciffcation
3.For RoHS part add suffix NL
4.RoHS"NL" peak solder rating 260℃%%P5℃.

Applications:

Used for networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem
