HFJT1-2GHPRL 2.5G BASE-T Single Port PoE+ Long Body RJ45 FastJack No LED Tab UP 4PPoE 600mA

Product Categories
LINK-PP INT'L TECHNOLOGY CO., LIMITED
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

HFJT1-2GHPRL 2.5G BASE-T Single Port PoE+ Long Body RJ45 FastJack No LED Tab UP 4PPoE 600mA

  • 1
  • 2
  • 3

Brand Name : LINK-PP

Model Number : LPJGxxxxxx

Certification : UL,ROHS,Reach,ISO

Place of Origin : GuangDong, China

MOQ : 50/500/1000

Price : OEM Price

Payment Terms : TT,NET30/60/90 Days

Supply Ability : 3000000/Month

Delivery Time : Stock

Packaging Details : Tray Package: 50 pcs in 1 tray,24tray in 1 carton, which is 32*30*31 , 8.5 KGS (1200pcs) of each carton

Original : HFJT1-2GHPRL

Equivalent : LPJGxxxxxx

Operating Temperature : 0°C ~ 70°C

Samples : Free Available

File : PDF/3D/ISG/Stp/Step/Datasheet/Touchstone Format/S-parameters

Lifecycle : More than 20Years

Contact Now

HFJT1-2GHPRL 2.5G Single Port PoE+ Long Body RJ45 FastJack NO led Tab UP 4PPoE 600mA

LINK-PP Part Number LPJGxxxxxx
Part Number HFJT1-2GHPRL
Part Status Active
Connector Type Jack
Number of Positions/Contacts 12p8c (RJ45, Ethernet)
LATCH Tab UP
SPEED 2.5G BASE-T
POE RATING POE+

HFJT1-2GHPRL 2.5G BASE-T Single Port PoE+ Long Body RJ45 FastJack No LED Tab UP 4PPoE 600mA

HFJT1-2GHPRL Product Features:

. 2.5G and 5G Ethernet RJ45
. IEEE802.3bz/af/at/bt Compliant
. Compatible with Current and Voltage Drive PHY’s
. 100% Compliance Testing
. 1500Vrms Hi-Pot
. 30µ” Gold (min) on Contacts
. Proprietary Robust Contact Design
. UL60950 and UL62368 Recognized


HFJT1-2GHPRL 2.5G Single Port PoE+ Long Body RJ45 FastJack Circuit Diagram:

HFJT1-2GHPRL 2.5G BASE-T Single Port PoE+ Long Body RJ45 FastJack No LED Tab UP 4PPoE 600mA


HFJT1-2GHPRL 2.5G Single Port PoE+ RJ45 Magnetics Module Mechanical Specification:
HFJT1-2GHPRL 2.5G BASE-T Single Port PoE+ Long Body RJ45 FastJack No LED Tab UP 4PPoE 600mA

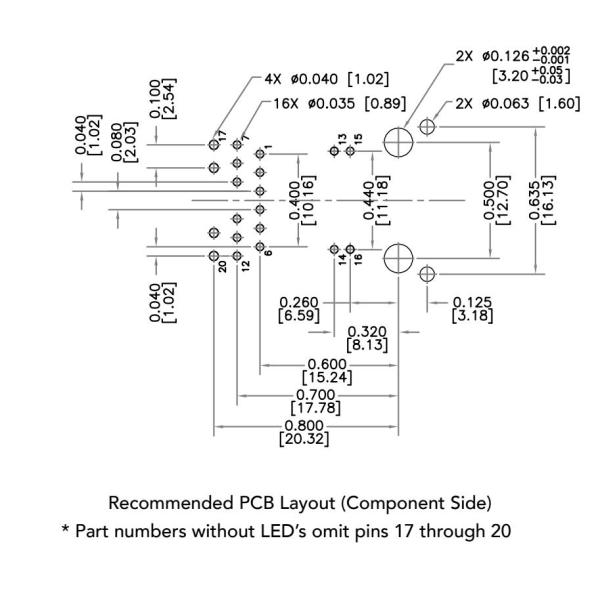

HFJT1-2GHPRL Recommended PCB Layout (Component Side)
HFJT1-2GHPRL 2.5G BASE-T Single Port PoE+ Long Body RJ45 FastJack No LED Tab UP 4PPoE 600mA

HFJT1-2GHPRL​ RJ45 Jack Similar Part Number :

HFJT1-2GHPRL HFJT1-2GHP-L11RL HFJT1-2GHP-L12RL
HFJT1-2GH4PRL HFJT1-2GH4P-L11RL HFJT1-2GH4P-L12RL
HFJT1-5GHPRL HFJT1-5GHP-L11RL HFJT1-5GHP-L12RL
HFJT1-5GH4PRL HFJT1-5GH4P-L11RL HFJT1-5GH4P-L12RL
HFJT1-2GHPERL HFJT1-2GHPE-L11RL HFJT1-2GHPE-L12RL
HFJT1-2GH4PERL HFJT1-2GH4PE-L11RL HFJT1-2GH4PE-L12RL
HFJT1-5GHPERL HFJT1-5GHPE-L11RL HFJT1-5GHPE-L12RL
HFJT1-5GH4PERL HFJT1-5GH4PE-L11RL HFJT1-5GH4PE-L12RL
